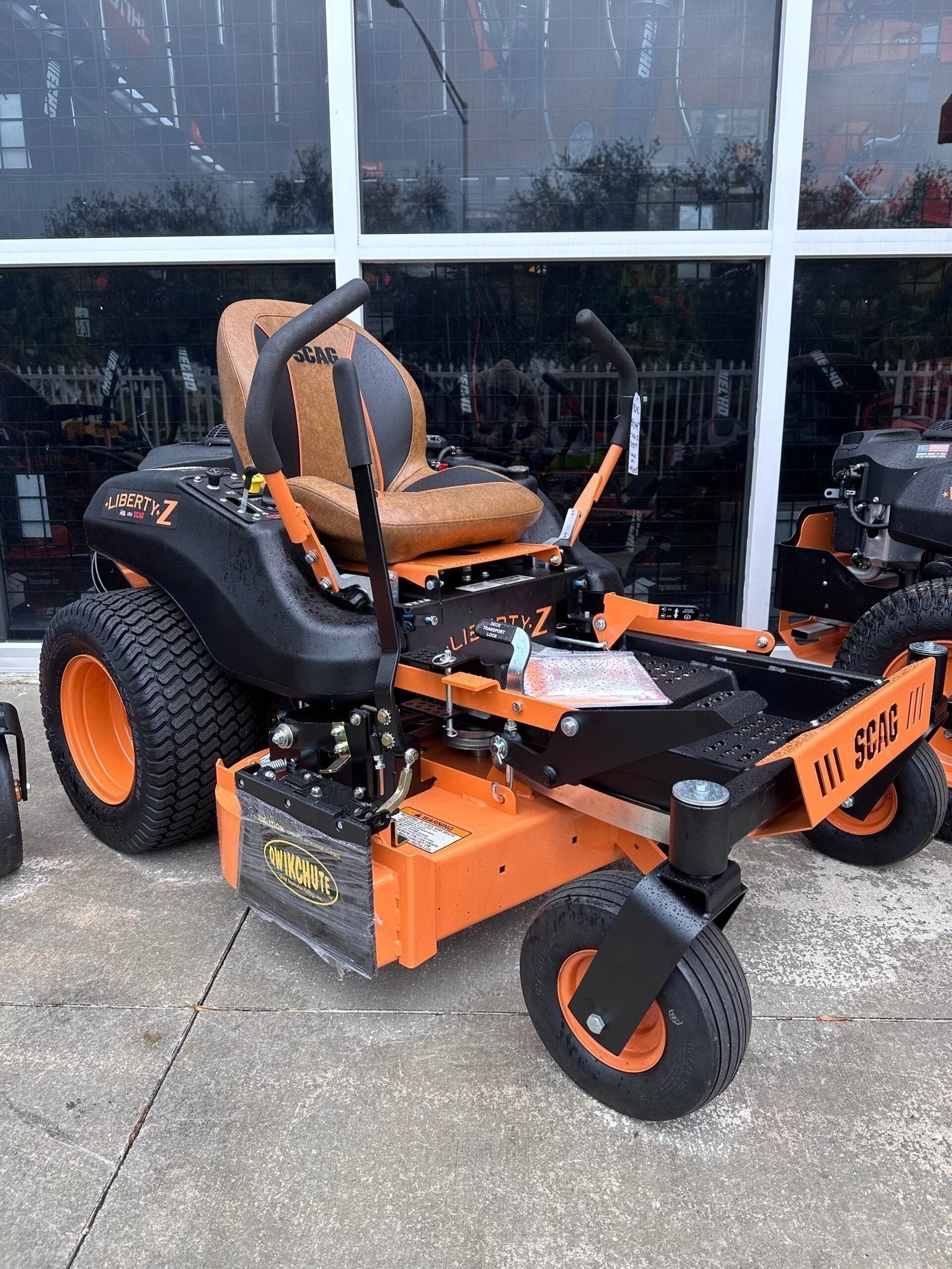

Scag Liberty Z 42″ Zero-Turn-Mower Hero Deck with Scag
$719.10
5 sold in last 10 hours
Hurry! Over 1 people have this in their carts
Estimated Delivery: Mon, Jun 08 – Tue, Jun 09 (Excl Sat, Sun)
... people are viewing this right now
42″ Hero Cutter Deck, 21 HP Kawasaki® FR651V OR Briggs 22hp PXi OR Kohler 22HP KT
FEATURES
- Proven Transaxles – Speeds Up To 7 MPH: The ZT drive systems’ dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels (36″, 42″, 52″ and 61″ models). The 48″ model features proven Tuff Torq transaxles.
- Command perfection – DEEP, FABRICATED, AND WELDED CUTTER DECKS: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
- Ogura PTO Clutch Brake – Strong, Adjustable Clutch for Long Life: The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.
- Easy Foot-Pedal Deck Lift – Easy Up, Easy Down: Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.
- Contoured, Bolstered, High-Back Seat – Ride in Comfort: This ultra-comfortable and adjustable (with tools) and contoured for improved comfort, and features armrests.
- Low-Maintenance Mower Design – More Uptime: Fewer grease points increase operator convenience and ease-of-ownership.
- High-Strength Steel Frame – Solid Design for Years of Dependable Service: Tubular-steel main frame delivers unmatched strength and longevity.
- Powerful and Efficient Engine Options – Reliable Power, Up To 24 HP: Choose from a Kawasaki® FR or Kohler® 7000 Series engine.
SPECIFICATIONS
- Description: 42″ Hero Cutter Deck, 21 HP Kawasaki® FR651V – V-twin OR Briggs 22hp PXi OR Kohler 22HP KT
- Total Fuel Capacity: 3.5 gallons (36″ and 42″); 5.5 gallons (48″, 52″ and 61″)
- Drive Tires: 20″ x 8″-10″ (36″); 20″ x 10″-8″ (42″, 48″ and 52″); 20″ x 10″-10″ (61″)
- Caster Tires: 11″ x 4″-5″ (36″ and 42″); 11″ x 6″-5″ (48″, 52″ and 61″)
- Seat: Padded with arm rests, adjustment forward and back (tools required); (no armrests on 36″ and 42″ models)
- Drive System Type: Hydro-Gear ZT2800 Transaxle (36″, 42″ and 52″); Tuff Torq TZ450 Transaxle (48″); Hydro-Gear ZT3100 Transaxle (61″)
- Pumps: Internal Pump: 10 cc
- Motors: Internal Motor: 10cc (Tuff Torq), 16 cc (Hydro-Gear)
- Forward Ground Speed: 7 mph
- Reverse Ground Speed: 5 mph
- Parking Brake: Hand lever
- Cutting Widths: 36″, 42″, 48″, 52″ and 61″
- Type: Heavy-Duty Hero Cutter Deck
- Cutting Height: 1.5″ to 4.5″ in .25″ increments
- Deck Lift: Foot-operated pedal
- Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
- Spindles: Aluminum housing with sealed ball bearings.
- Blade Engagement: Ogura GT1 (74 ft lb) – (36″, 42″, 48″ and 52″); Ogura GT2 (108 ft lb) – (61″); Adjustable air-gap for extended life.
DIMENSIONS
- Length: 68.5″
- Width (chute down): 54.5″
- Width (chute in transport position): 43″
- Height: 41″
- Weight: 595 lb
ACCESSORIES
- 2-Bag Grass Catcher
- Fabric Bag Grass Catcher
- Hurricane Mulch System
- Mulch Plate
- Tiger Stripe Kit
- Light Kit
- Trailer Hitch
- Chrome Wheel Covers
- Blade Buddy
- Cutter Deck Transport Latch
